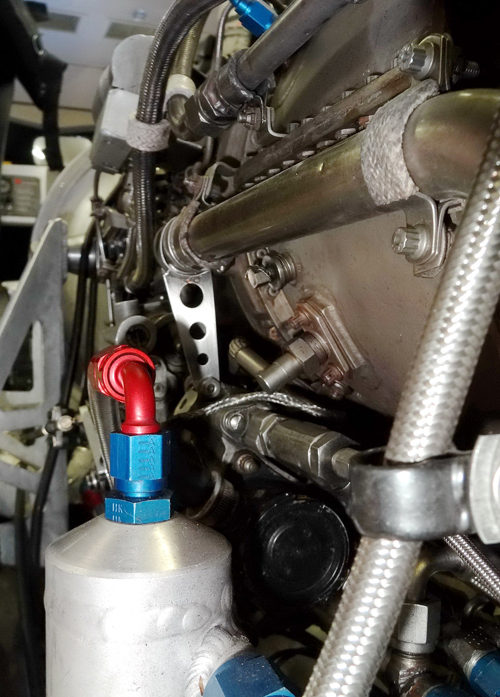

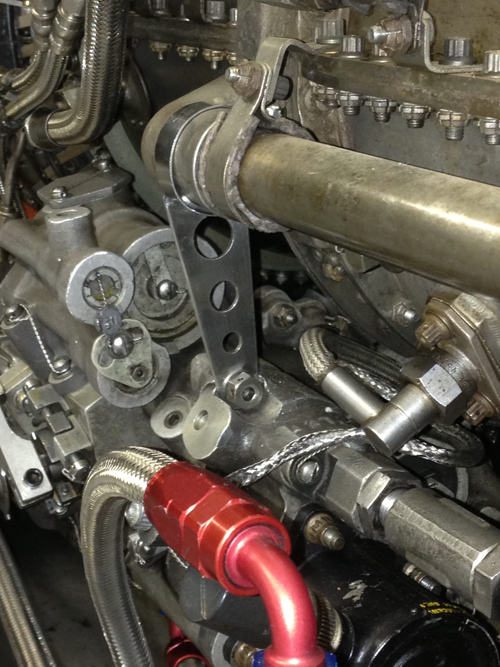

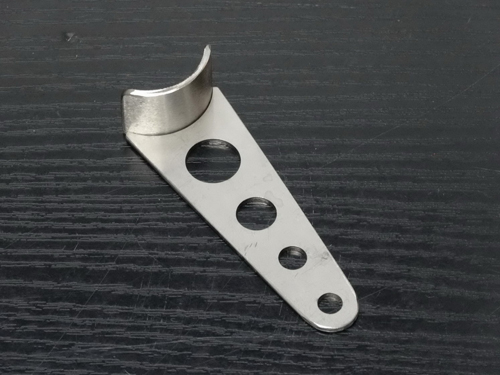

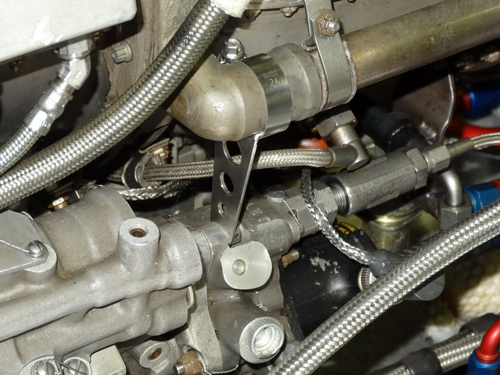

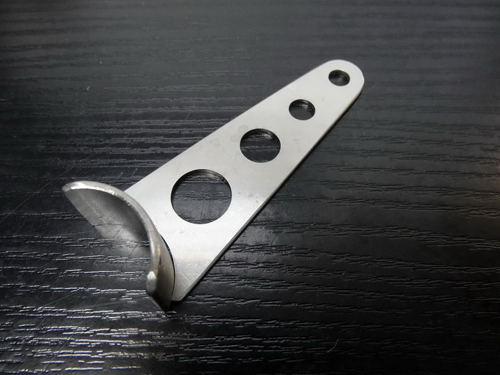

NT-FCS101-T58  Fuel Control Support Bracket.

This experimental support bracket was designed to address the serious cracking that occurs in the front frame / accessory drive casting of the General Electric T58 series engines when used in a high impact marine environment. The T58 fuel control is normally supported by the forward mounting pad only; this presents a large overhanging load as the fuel control unit is quite long. Under heavy pounding, the front frame has been known to crack at the rear filet near the FCU mounting pad due to the high moment produced by the overhung load.

The NT-FCS101-T58 is experimental and has had no formal testing or engineering whatsoever. You must determine its suitability for your application and if you choose to use it, you do so at your own risk. The bracket could have unknown adverse effects, it could break, and it could break your engine and cause an explosion. The NT-FCS101-T58 is guaranteed to sink in water, no other warrantee or promise of performance or suitability for any purpose is expressed or implied.

Features:

  • Simple elegant design.
  • Light weight.
  • Stainless steel.
  • Easy to install.



For more information and pricing contact:



Want to know more?
The NT Infopack CD contains lots of detailed drawings and high-res. photos.
